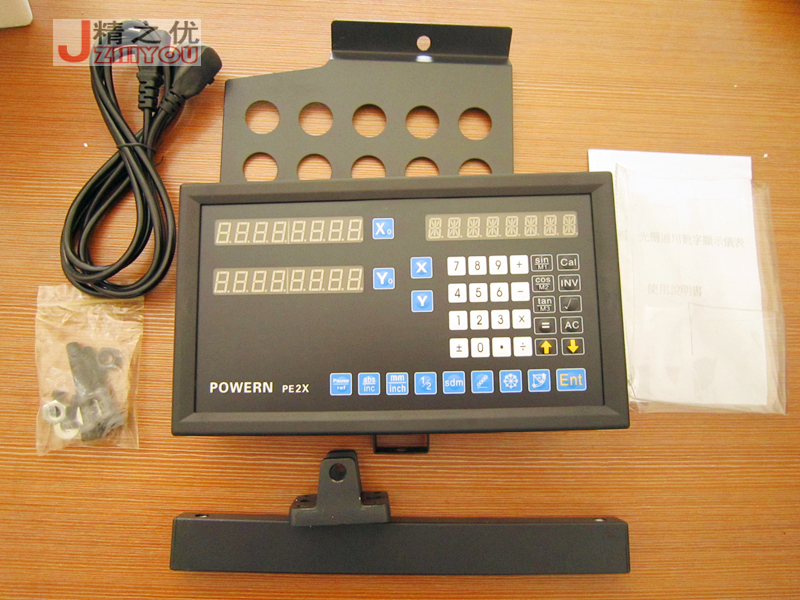

powernPOWERNPE2X博望光柵尺表數顯尺PE3X PE2M數顯表光柵尺數顯
PE數字顯示表系列
電壓范圍：AC 85~250V 50HZ~60HZ
功率：15W
工作溫度：0~50。C
儲存溫度：-30。C~70。C
重量≤4.2kg
顯示： 1位符號顯示
信息窗：7位數字顯示
信號：TTL 方波
| 功能 | 型號 | PE-1 | PR2X | PE2M | PE2C | PE3X | PE3E |
| 適用機械 | Mill | Grinding | Lathe | Mill | EDM | ||
| 軸數 | Two axis | Three axis | |||||
| 分辨率 | 0.5μm | 1μm | 2μm | 3μm | 10μm | ||
| 清零 | ● | ● | ● | ● | ● | ● | |
| 公/項制顯示 | ● | ● | ● | ● | ● | ● | |
| 坐標輸入 | ● | ● | ● | ● | ● | ● | |
| ABS/INC功能 | ● | ● | ● | ● | ● | ● | |
| 暫停功能 | ● | ● | ● | ● | ● | ● | |
| 自動分中 | ● | ● | ● | ● | |||
| 停電記憶 | ● | ● | ● | ● | ● | ● | |
| 線性誤差補償 | ● | ● | ● | ● | ● | ● | |
| ref尺中記數 | ● | ● | ● | ● | ● | ● | |
| sdm輔助零位記憶 | ● | ● | ● | ● | ● | ● | |
| PCD圓周分孔功能 | ● | ● | ● | ||||
| 斜線上分孔功能 | ● | ● | |||||
| INCL斜面功能 | ● | ● | |||||
| 簡易R功能 | ● | ||||||
| 平滑R功能 | ● | ● | |||||
| 矩形內腔加工功能 | ● | ||||||
| 刀具補償功能 | ● | ||||||
| 斜度功能 | ● | ||||||
| 計算器功能 | ● | ● | |||||
| 振動過濾功能 | ● | ||||||
| 刀具庫功能 | ● | ● | |||||
| 錐度測量功能 | ● | ● | |||||
| R/D轉換功能 | ● | ● | |||||
| （EDM）功能 | ● | ● |
|||||
